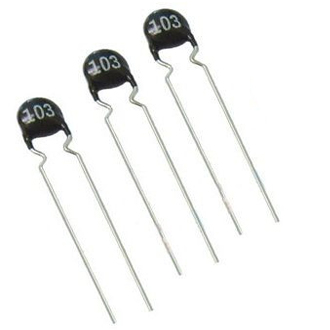

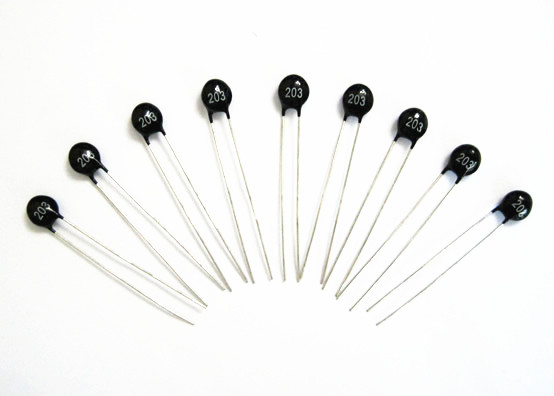

MF11 Compensation Type NTC thermistor is a kind of epoxy resin-enveloped component in Small size which is made from new material and by new technique, has the virtue of high precision and fast response characteristics etc.
1. Rated Resistance range:5Ω~500KΩ
2. Resistance Allowable Tolerance: ±5%, ±10%，±15%, ±20%
3. B value at 25/50℃ : 2600~4750
4. Thermal Time Constant: ≤30s
5. Rated Power: 450mW
6. Temperature Range: -30～+150℃
1. Home appliances (air conditioner, refrigerator, electric fan, washing machine, microwave oven, drinking machine, CTV , radio)
2. Automotive electronics
3. Computers, Digital energy meter
4. Other applications for precise temperature measurement and compensation
