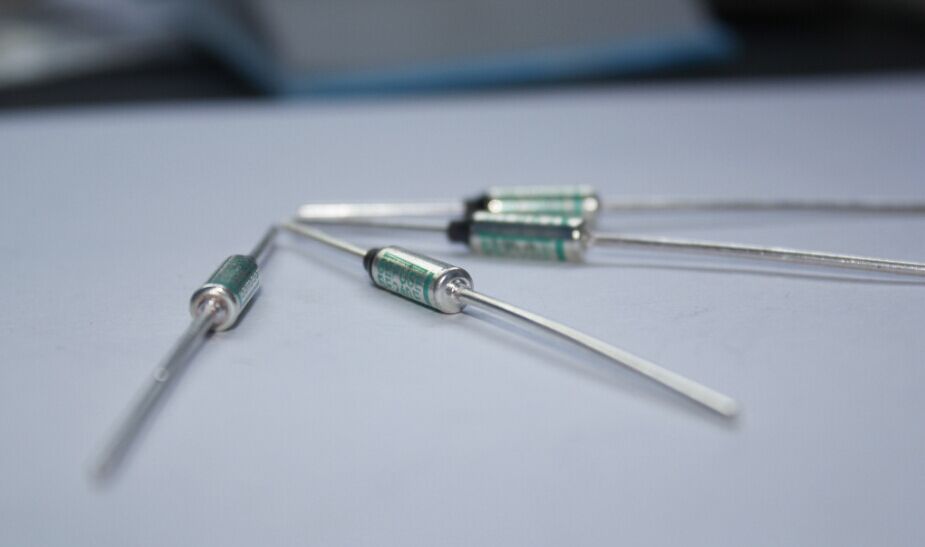

Thermal Cutoff(Metal case)

Metal case Thermal Fuse is a small size but strong heat protection component which can detect if the temperature is proper and cut the circuit if temperature is not. It features a large cutoff rated current up to 15A/250VAC. The application covers electrical appliance, home appliance and industrial equipment, it is used to prevent the circuit from fire disaster.

  • ELECTRICAL PARAMETERS

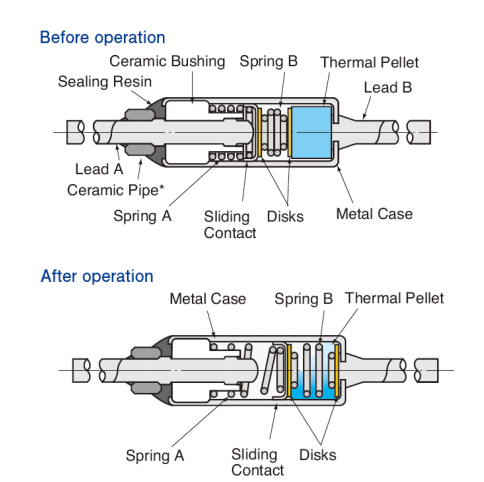

  • Operation Illustration

1. Rated Functioning temperature:55~320℃

2. Holding Temperature:35~250℃

3. Maximum Temperature:120~300℃

4. Rated Voltage:AC250V

5. Rated Current: 10A/15A
