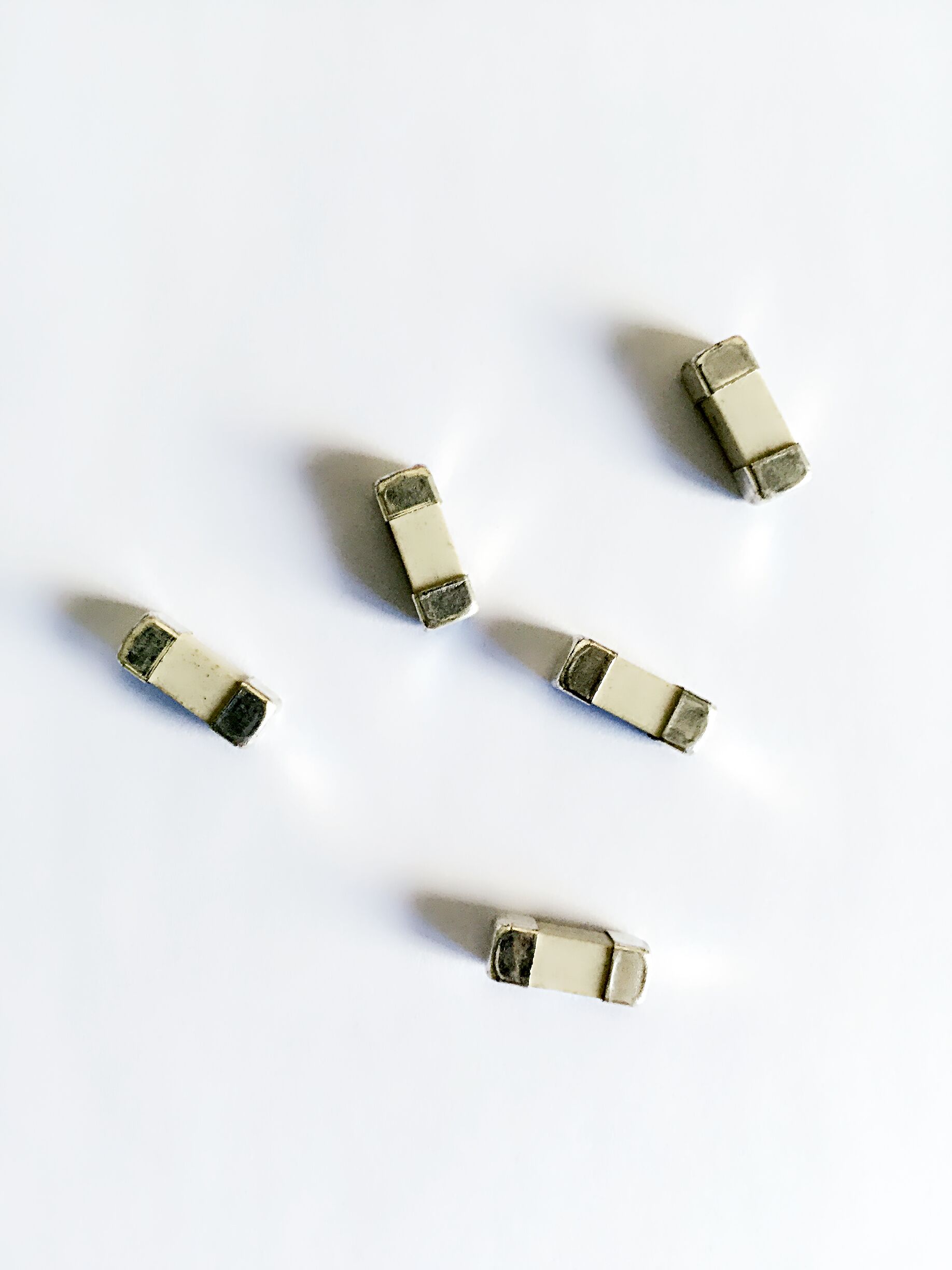

4818 Size Surface Mount Fuse with fast-acting characteristics; it is a very small square shape fuse which is very suitable for the secondary side circuit over-current protection applications and is convenient for PCB layout.
Product：Fast-acting Type
Model：F4818A/F4818B/T4818C
Rated Voltage:125V/250V/600V
Breaking Capacity:500mA-10A,100A@250V AC
1. Power supply devices
2. Networking devices
3. Consumer Electronics
4. LED Lighting Devices
5. Telecommunication system
6. Wireless base station
7. Automation equipment
8. Battery charging circuit protection
9. Industrial equipment
10. Medical equipment
11. Automotive Industry
1. Very fast acting speed
2. Small size
3. Wide range of current rating available
4. Wide operating temperature range
5. Low temperature derating
6. RoHS compliant
