This product is suitable for various kinds of electronic devices circuit over-current protection. Widely used in industries of Battery Chargers, Consumer Electronics, Power supplies, Industrial Controllers, etc.

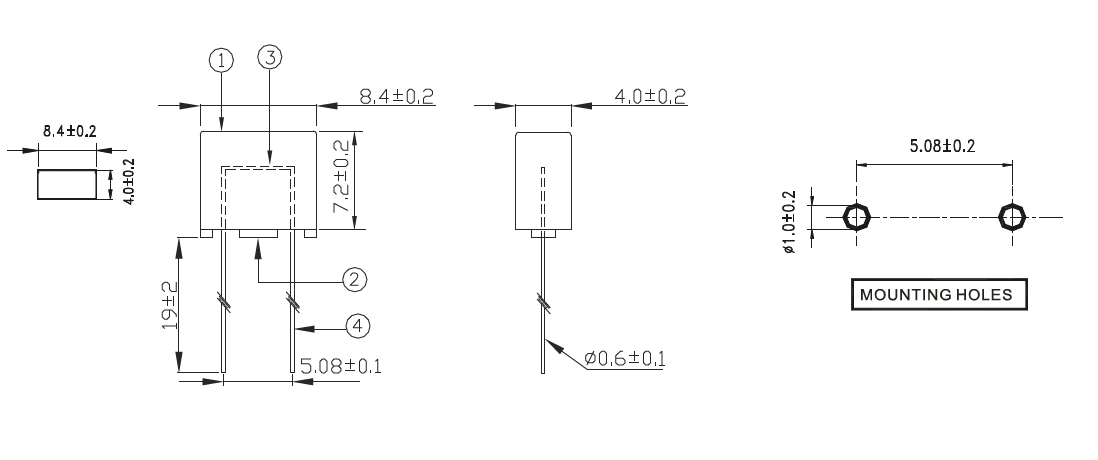

Umit:mm
1. Rated Current:50mA-10A
2. Rated Voltage:250V /350V
3. Time-lag Character
1. Reduce Space for PCB Layout
2. Can be direct Solderable or Plug-in
3. Low Internal Resistance
4. Shock Safe Casing
5. Vibration Resistant
6. Color: Black or brown
7. RoHS Compliant
