This series of chargers are totally intelligent which most functions are controlled by CPU board and software, suitable for charging lithium batteries, lead-acid batteries, and water batteries. The whole machine has the characteristics of light weight, small size, stable charging, high efficiency, safety and reliability, built-in high-precision digital PI algorithm, real-time accurate control of voltage loop and circuit loop, anti-reverse connection, over-temperature protection, no-load no output, Protection functions such as output short circuit and output overload.

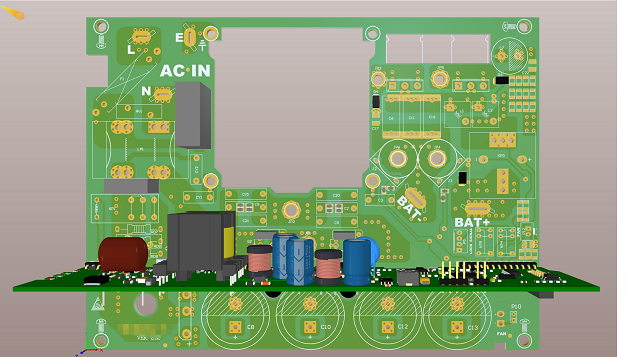

Ecube-Tech Open full Designed Schematic Circuit, BOM, PCB Drawings,technical service to customers, we also provide customized design reference and software programme by free.
Fell free to contact us for further details by email: designservice@ecube-tech.com
This series of chargers are widely used in the cyclic charging of electric vehicles, forklifts, golf carts, electric browsing vehicles, electric cruise ships, electric cleaning equipment and UPS power supplies, solar power generation, wind power generation and electric communication railway systems.
Features:
1. intelligent control functions
2. cost-saving, Small size & Light Weight, Stable Charging.
3. Complete protection, all parameters adjusted by software easily
4. High Efficiency, High Reliability.
5. Compatible with more than 100 types battery ratings.
Technical indicators:
Input voltage range: AC180V~AC250V
Input frequency range: 45~65Hz
Maximum efficiency: ≥93%
Working temperature: -40℃~+55℃
Storage temperature: -40℃~+100℃
Charging control: charge according to the charging curve provided by the battery manufacturer
protection characteristics:
1. Overheating protection: When the internal temperature of the charger exceeds 75℃, the charging current will automatically decrease. When it exceeds 80℃, the charger will shut down protectively, the temperature will drop to 65℃, and the charging will resume automatically.
2. Short-circuit protection: When the charger output is accidentally short-circuited, the charger will automatically turn off the output, and after the fault is removed, the charger will restart charging after a delay of 10 seconds.
